Sunday, February 27, 2011

How the floorboards are held down....

I was asked how the floorboards are held down....

There's a Jamb Cleat on the frame, and a wooden "hook" on the underside of the floorboard.

The cord goes up behind the hook, around the bottom of the jamb cleat, around the cleat and pull.

You can see in the second picture, the Jamb Cleat is simply a piece of wood cut so that where it meets the oak frame, it makes a very narrow triangular gap. As the cord is pulled tight, it traps itself.

Simple as that. There may be better ways, but that's cheap, and it works.


Monday, February 07, 2011

Cleat Envy

Ok, the first attempt at cleats were functional, but frankly, ugly.


A quick post to http://forum.woodenboat.com/ and I have a much better Idea of what I wanted.

Longer bases, for strength, lower, and more rounded.
Posted by Picasa

Sunday, February 06, 2011

A simple cut off saw.

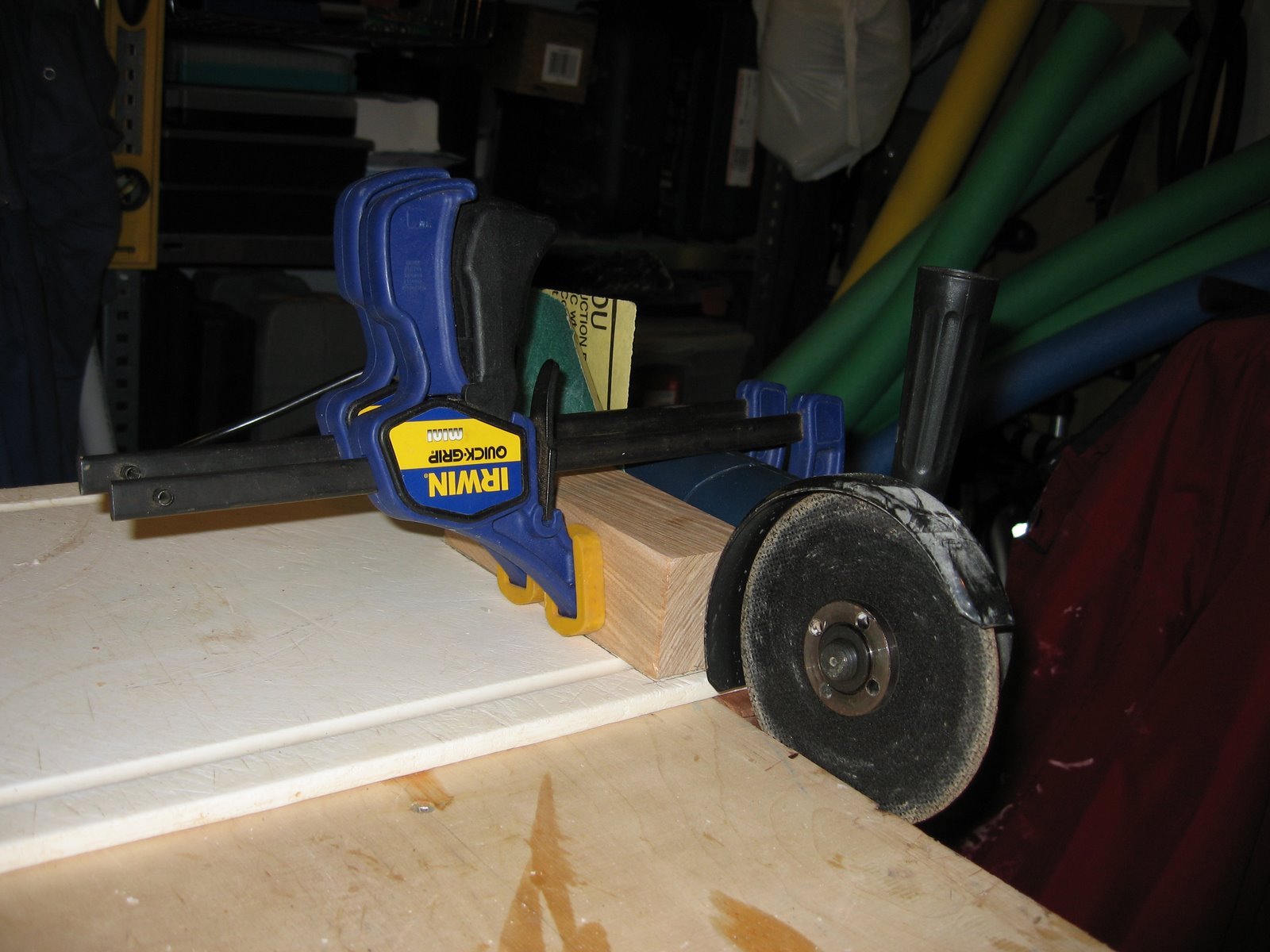

Since I don't really need a metal cut off saw all that often, and I have little room for more tools, I cobbled this together. It's just an angle grinder, and a sled. The sled is constrained by runners, so it moves in a straight line.
The Cutting blade is close enough to square to the table for my purposes.

I tried it out by cutting a hollow steel rod at 45 degrees, and then flipping the parts to join them at 90 degrees. It works just fine.

Yes, that is an old bread board.
